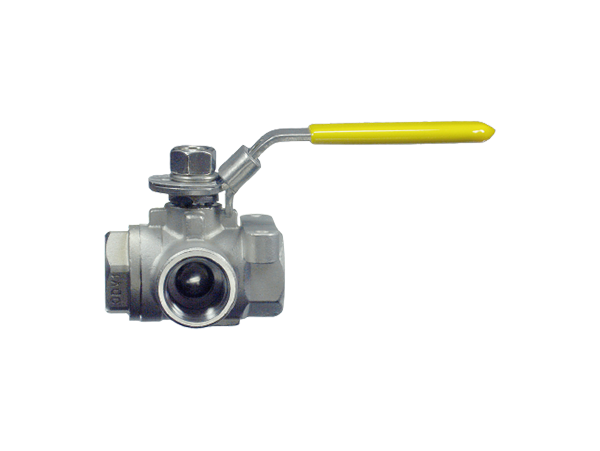

Paslanmaz Küresel Vana PB350-500

Hidrolik sektörünün önemli demirbaşlarından olan Küresel Vanalar ve İğne Vanaların satışını yapmaktayız. Küresel Vanalar ve İğne Vanalar kategorisi altında küresel vana, iğne vana, silindirik vana gibi aradığınız birçok paslanmaz bağlantı elemanları bizden temin edebilirsiniz. Hidrolik bağlantı elemanlarını paslanmaz çelikten 1.4571 (AISI 316Ti) üretmekteyiz. Özelliği 316Ti ve 316L olan parçalarımız yüksek basınç ve sıcaklığa dayanıklıdır. Aradığınız ürünün detaylı bilgilerine ürün tablolarından ulaşabilirsiniz.

SheetJS Table Export

Agirlik / Weight / Gewicht	DN	BasÄ±nc / Pressure / Druck	Dis / Thread / Gewinde	Olculer / Measurements / Ca. MaÃe												Urun Kodu / Product Code / Artikelnummer	Fiyat / Price
kg	DN	BasÄ±nc / Pressure / Druck	Dis / Thread / Gewinde	B	H	H1	H2	H4	i	L	L1	M	SW	SW Ã¸		Urun Kodu / Product Code / Artikelnummer	Fiyat / Price
BSP Female Thread DIN ISO 228
0.35	5	100	G 1/8"	35	43.5	32	8	13	9	69	36	M 5	22	9		RKH-G-1/8"-4445	*
0.35	6	100	G 1/4"	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-G-1/4"-4445	*
0.5	10	100	G 3/8"	42	49.5	38	8	16.5	12	73	43	M 5	27	9		RKH-G-3/8"-4445	*
0.65	13	100	G 1/2"	45	51.5	40	8	17.5	14	85	48	M 5	30	9		RKH-G-1/2"-4445	*
0.75	16	100	G 5/8"	50	62	46	12	19	14	84	48	M 6	32	12		RKH-G-5/8"-4445	*
1.5	20	100	G 3/4"	60	73	57	12	24.5	17	96	62	M 6	41	14		RKH-G-3/4"-4445	*
1.8	24	100	G 1"	65	79	63	12	28	19	113	66	M 6	46	14		RKH-G-1"-4445	*
3.8	32	100	G 1 1/4"	90	104	84	13.5	38	20	110	81	M 8	60	17		RKH-G-1 1/4"-4445	*
6.1	38	100	G 1 1/2"	100	112	93	13.5	42.5	22	120	86	M 8	70	17		RKH-G-1 1/2"-4445	*
9.1	48	100	G 2"	120	131	111	13.5	50	28	140	101	M 8	85	17		RKH-G-2"-4445	*
BSP Female Thread DIN ISO 228 PTFE - EPDM
BSP Female Thread DIN ISO 228 PTFE - EPDM
0.35	5	100	G 1/8"	35	43.5	32	8	13	9	69	36	M 5	22	9		RKH-G-1/8"-4446	*
0.35	6	100	G 1/4"	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-G-1/4"-4446	*
0.5	10	100	G 3/8"	42	49.5	38	8	16.5	12	73	43	M 5	27	9		RKH-G-3/8"-4446	*
0.65	13	100	G 1/2"	45	51.5	40	8	17.5	14	85	48	M 5	30	9		RKH-G-1/2"-4446	*
0.75	16	100	G 5/8"	50	62	46	12	19	14	84	48	M 6	32	12		RKH-G-5/8"-4446	*
1.5	20	100	G 3/4"	60	73	57	12	24.5	17	96	62	M 6	41	14		RKH-G-3/4"-4446	*
1.8	24	100	G 1"	65	79	63	12	28	19	113	66	M 6	46	14		RKH-G-1"-4446	*
3.8	32	100	G 1 1/4"	90	104	84	13.5	38	20	110	81	M 8	60	17		RKH-G-1 1/4"-4446	*
6.1	38	100	G 1 1/2"	100	112	93	13.5	42.5	22	120	86	M 8	70	17		RKH-G-1 1/2"-4446	*
9.1	48	100	G 2"	120	131	111	13.5	50	28	140	101	M 8	86	17		RKH-G-2"-4446	*
BSP Female Thread DIN ISO 228 POM - NBR
BSP Female Thread DIN ISO 228 POM - NBR
0.35	5	500	G 1/8"	35	43.5	32	8	13	9	69	36	M 5	22	9		RKH-G-1/8"-4423	92.00
0.35	6	500	G 1/4"	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-G-1/4"-4423	92.00
0.5	10	500	G 3/8"	42	49.5	38	8	16.5	12	73	43	M 5	27	9		RKH-G-3/8"-4423	94.25
0.65	13	500	G 1/2"	45	51.5	40	8	17.5	14	85	48	M 5	30	9		RKH-G-1/2"-4423	101.55
0.75	16	400	G 5/8"	50	62	46	12	19	14	84	48	M 6	32	12		RKH-G-5/8"-4423	*
1.5	20	400	G 3/4"	60	73	57	12	24.5	17	96	62	M 6	41	14		RKH-G-3/4"-4423	206.40
1.8	24	400	G 1"	65	79	63	12	28	19	113	66	M 6	46	14		RKH-G-1"-4423	225.75
3.8	32	350	G 1 1/4"	90	104	84	13.5	38	20	110	81	M 8	60	17		RKH-G-1 1/4"-4423	409.50
6.1	38	350	G 1 1/2"	100	112	93	13.5	42.5	22	120	86	M 8	70	17		RKH-G-1 1/2"-4423	531.70
9.1	48	350	G 2"	120	131	111	13.5	50	28	140	101	M 8	85	17		RKH-G-2"-4423	639.70
NPT Female Thread ANSI B 2.1 PTFE - FKM
NPT Female Thread ANSI B 2.1 PTFE - FKM
0.35	5	100	1/8"-27 NPT	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-1/8"-NPT-4445	*
0.35	6	100	1/4"-18 NPT	35	43.5	32	8	13	17	69	36	M 5	22	9		RKH-1/4"-NPT-4445	*
0.5	10	100	3/8"-18 NPT	42	49.5	38	8	16.5	17	73	43	M 5	27	9		RKH-3/8"-NPT-4445	*
0.65	13	100	1/2"-14 NPT	45	51.5	40	8	17.5	22	92	48	M 5	30	9		RKH-1/2"-NPT-4445	*
1.5	20	100	3/4"-14 NPT	60	73	57	12	24.5	23	97	62	M 6	41	14		RKH-3/4"-NPT-4445	*
1.8	24	100	1"-11,5 NPT	65	79	63	12	28	27	113	66	M 6	46	14		RKH-1"-NPT-4445	*
3.8	32	100	1 1/4"-11,5 NPT	90	104	84	13.5	38	28	115	81	M 8	60	17		RKH-1 1/4"-NPT-4445	*
6.1	38	100	1 1/2"-11,5 NPT	100	112	93	13.5	42.5	28	135	86	M 8	70	17		RKH-1 1/2"-NPT-4445	*
9.1	48	100	2"-11,5 NPT	120	131	111	13.5	50	30	140	101	M 8	85	17		RKH-2"-NPT-4445	*
NPT-Female Thread ANSI B 2.1 PTFE - EPDM
NPT-Female Thread ANSI B 2.1 PTFE - EPDM
0.35	5	100	1/8"-27 NPT	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-1/8"-NPT-4446	*
0.35	6	100	1/4"-18 NPT	35	43.5	32	8	13	17	69	36	M 5	22	9		RKH-1/4"-NPT-4446	*
0.5	10	100	3/8"-18 NPT	42	49.5	38	8	16.5	17	73	43	M 5	27	9		RKH-3/8"-NPT-4446	*
0.65	13	100	1/2"-14 NPT	45	51.5	40	8	17.5	22	92	48	M 5	30	9		RKH-1/2"-NPT-4446	*
1.5	20	100	3/4"-14 NPT	60	73	57	12	24.5	23	97	62	M 6	41	14		RKH-3/4"-NPT-4446	*
1.8	24	100	1"-11,5 NPT	65	79	63	12	28	27	113	66	M 6	46	14		RKH-1"-NPT-4446	*
3.8	32	100	1 1/4"-11,5 NPT	90	104	84	13.5	38	28	115	81	M 8	60	17		RKH-1 1/4"-NPT-4446	*
6.1	38	100	1 1/2"-11,5 NPT	100	112	93	13.5	42.5	28	135	86	M 8	70	17		RKH-1 1/2"-NPT-4446	*
9.1	48	100	2"-11,5 NPT	120	131	111	13.5	50	30	140	101	M 8	85	17		RKH-2"-NPT-4446	*
NPT-Female Thread ANSI B 2.1 POM - NBR
NPT-Female Thread ANSI B 2.1 POM - NBR
0.35	5	500	1/8"-27 NPT	35	43.5	32	8	13	12	69	36	M 5	22	9		RKH-1/8"-NPT-4423	99.45
0.35	6	500	1/4"-18 NPT	35	43.5	32	8	13	17	69	36	M 5	22	9		RKH-1/4"-NPT-4423	99.45
0.5	10	500	3/8"-18 NPT	42	49.5	38	8	16.5	17	73	43	M 5	27	9		RKH-3/8"-NPT-4423	102.05
0.65	13	500	1/2"-14 NPT	45	51.5	40	8	17.5	22	92	48	M 5	30	9		RKH-1/2"-NPT-4423	109.95
1.5	20	400	3/4"-14 NPT	60	73	57	12	24.5	23	97	62	M 6	41	14		RKH-3/4"-NPT-4423	223.31
1.8	24	400	1"-11,5 NPT	65	79	63	12	28	27	113	66	M 6	46	14		RKH-1"-NPT-4423	244.23
3.8	32	350	1 1/4"-11,5 NPT	90	104	84	13.5	38	28	115	81	M 8	60	17		RKH-1 1/4"-NPT-4423	443.15
6.1	38	350	1 1/2"-11,5 NPT	100	112	93	13.5	42.5	28	135	86	M 8	70	17		RKH-1 1/2"-NPT-4423	558.30
9.1	48	350	2"-11,5 NPT	120	131	111	13.5	50	30	140	101	M 8	85	17		RKH-2"-NPT-4423	671.65
For Compression Fitting Light Series DIN 2353 PTFE - FKM
For Compression Fitting Light Series DIN 2353 PTFE - FKM
0.3	5	100	M 12 x 1,5	35	43.5	32	8	13	10	67	36	M 5	6	22	9	RKH-06-L-4445	*
0.3	6	100	M 14 x 1,5	35	43.5	32	8	13	10	67	36	M 5	8	22	9	RKH-08-L-4445	*
0.3	8	100	M 16 x 1,5	35	43.5	32	8	13	11	71	36	M 5	10	22	9	RKH-10-L-4445	*
0.5	10	100	M 18 x 1,5	42	49.5	38	8	16.5	11	75	43	M 5	12	27	9	RKH-12-L-4445	*
0.6	13	100	M 22 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	15	30	9	RKH-15-L-4445	*
0.6	13	100	M 26 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	18	30	9	RKH-18-L-4445	*
1.5	20	100	M 30 x 2	60	73	57	12	24.5	14	102	62	M 6	22	41	14	RKH-22-L-4445	*
1.8	24	100	M 36 x 2	65	79	63	12	28	14	108	66	M 6	28	46	14	RKH-28-L-4445	*
3.6	32	100	M 45 x 2	90	104	84	13.5	38	16	128	81	M 8	35	60	17	RKH-35-L-4445	*
5.9	38	100	M 52 x 2	100	112	93	13.5	42.5	16	133	86	M 8	42	70	17	RKH-42-L-4445	*
For Compression Fitting Light Series DIN 2353 PTFE - EPDM
For Compression Fitting Light Series DIN 2353 PTFE - EPDM
0.3	5	100	M 12 x 1,5	35	43.5	32	8	13	10	67	36	M 5	6	22	9	RKH-06-L-4446	*
0.3	6	100	M 14 x 1,5	35	43.5	32	8	13	10	67	36	M 5	8	22	9	RKH-08-L-4446	*
0.3	8	100	M 16 x 1,5	35	43.5	32	8	13	11	71	36	M 5	10	22	9	RKH-10-L-4446	*
0.5	10	100	M 18 x 1,5	42	49.5	38	8	16.5	11	75	43	M 5	12	27	9	RKH-12-L-4446	*
0.6	13	100	M 22 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	15	30	9	RKH-15-L-4446	*
0.6	13	100	M 26 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	18	30	9	RKH-18-L-4446	*
1.5	20	100	M 30 x 2	60	73	57	12	24.5	14	102	62	M 6	22	41	14	RKH-22-L-4446	*
1.8	24	100	M 36 x 2	65	79	63	12	28	14	108	66	M 6	28	46	14	RKH-28-L-4446	*
3.6	32	100	M 45 x 2	90	104	84	13.5	38	16	128	81	M 8	35	60	17	RKH-35-L-4446	*
5.9	38	100	M 52 x 2	100	112	93	13.5	42.5	16	133	86	M 8	42	70	17	RKH-42-L-4446	*
For Compression Fitting Light Series DIN 2353 POM - NBR
For Compression Fitting Light Series DIN 2353 POM - NBR
0.3	5	500	M 12 x 1,5	35	43.5	32	8	13	10	67	36	M 5	6	22	9	RKH-06-L-4423	94.70
0.3	6	500	M 14 x 1,5	35	43.5	32	8	13	10	67	36	M 5	8	22	9	RKH-08-L-4423	94.70
0.3	8	500	M 16 x 1,5	35	43.5	32	8	13	11	71	36	M 5	10	22	9	RKH-10-L-4423	92.00
0.5	10	500	M 18 x 1,5	42	49.5	38	8	16.5	11	75	43	M 5	12	27	9	RKH-12-L-4423	94.25
0.6	13	500	M 22 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	15	30	9	RKH-15-L-4423	101.55
0.6	13	500	M 26 x 1,5	45	51.5	40	8	17.5	12	84	48	M 5	18	30	9	RKH-18-L-4423	101.55
1.5	20	400	M 30 x 2	60	73	57	12	24.5	14	102	62	M 6	22	41	14	RKH-22-L-4423	206.40
1.8	24	400	M 36 x 2	65	79	63	12	28	14	108	66	M 6	28	46	14	RKH-28-L-4423	225.75
3.6	32	350	M 45 x 2	90	104	84	13.5	38	16	128	81	M 8	35	60	17	RKH-35-L-4423	409.50
5.9	38	350	M 52 x 2	100	112	93	13.5	42.5	16	133	86	M 8	42	70	17	RKH-42-L-4423	531.70
For Compression Fitting Heavy Series DIN 2353 PTFE - FKM
For Compression Fitting Heavy Series DIN 2353 PTFE - FKM
0.3	5	100	M 14 x 1,5	35	43.5	32	8	13	12	73	36	M 5	6	22	9	RKH-06-S-4445	*
0.35	5	100	M 16 x 1,5	35	43.5	32	8	13	12	73	36	M 5	8	22	9	RKH-08-S-4445	*
0.35	6	100	M 18 x 1,5	35	43.5	32	8	13	12	73	36	M 5	10	22	9	RKH-10-S-4445	*
0.35	8	100	M 20 x 1,5	35	43.5	32	8	13	12	76	36	M 5	12	22	9	RKH-12-S-4445	*
0.5	10	100	M 22 x 1,5	42	49.5	38	8	16.5	14	84	43	M 5	14	27	9	RKH-14-S-4445	*
0.6	13	100	M 24 x 1,5	45	51.5	40	8	17.5	14	87	48	M 5	16	30	9	RKH-16-S-4445	*
0.65	13	100	M 30 x 2	45	51.5	40	8	17.5	16	91	48	M 5	20	30	9	RKH-20-S-4445	*
1.5	20	100	M 36 x 2	60	73	57	12	24.5	18	110	62	M 6	25	41	14	RKH-25-S-4445	*
1.9	24	100	M 42 x 2	65	79	63	12	28	20	120	66	M 6	30	46	14	RKH-30-S-4445	*
3.7	32	100	M 52 x 2	90	104	84	13.5	38	22	140	81	M 8	38	60	17	RKH-38-S-4445	*
For Compression Fitting Heavy series DIN 2353 PTFE - EPDM
For Compression Fitting Heavy series DIN 2353 PTFE - EPDM
0.3	5	100	M 14 x 1,5	35	43.5	32	8	13	12	73	36	M 5	6	22	9	RKH-06-S-4446	*
0.35	5	100	M 16 x 1,5	35	43.5	32	8	13	12	73	36	M 5	8	22	9	RKH-08-S-4446	*
0.35	6	100	M 18 x 1,5	35	43.5	32	8	13	12	73	36	M 5	10	22	9	RKH-10-S-4446	*
0.35	8	100	M 20 x 1,5	35	43.5	32	8	13	12	76	36	M 5	12	22	9	RKH-12-S-4446	*
0.5	10	100	M 22 x 1,5	42	49.5	38	8	16.5	14	84	43	M 5	14	27	9	RKH-14-S-4446	*
0.6	13	100	M 24 x 1,5	45	51.5	40	8	17.5	14	87	48	M 5	16	30	9	RKH-16-S-4446	*
0.65	13	100	M 30 x 2	45	51.5	40	8	17.5	16	91	48	M 5	20	30	9	RKH-20-S-4446	*
1.5	20	100	M 36 x 2	60	73	57	12	24.5	18	110	62	M 6	25	41	14	RKH-25-S-4446	*
1.9	24	100	M 42 x 2	65	79	63	12	28	20	120	66	M 6	30	46	14	RKH-30-S-4446	*
3.7	32	100	M 52 x 2	90	104	84	13.5	38	22	140	81	M 8	38	60	17	RKH-38-S-4446	*
For Compression Fitting Heavy Series DIN 2353 POM - NBR
For Compression Fitting Heavy Series DIN 2353 POM - NBR
0.3	5	500	M 14 x 1,5	35	43.5	32	8	13	12	73	36	M 5	6	22	9	RKH-06-S-4423	94.70
0.35	5	500	M 16 x 1,5	35	43.5	32	8	13	12	73	36	M 5	8	22	9	RKH-08-S-4423	94.70
0.35	6	500	M 18 x 1,5	35	43.5	32	8	13	12	73	36	M 5	10	22	9	RKH-10-S-4423	92.00
0.35	8	500	M 20 x 1,5	35	43.5	32	8	13	12	76	36	M 5	12	22	9	RKH-12-S-4423	92.00
0.5	10	500	M 22 x 1,5	42	49.5	38	8	16.5	14	84	43	M 5	14	27	9	RKH-14-S-4423	97.20
0.6	13	500	M 24 x 1,5	45	51.5	40	8	17.5	14	87	48	M 5	16	30	9	RKH-16-S-4423	101.55
0.65	13	500	M 30 x 2	45	51.5	40	8	17.5	16	91	48	M 5	20	30	9	RKH-20-S-4423	101.55
1.5	20	400	M 36 x 2	60	73	57	12	24.5	18	110	62	M 6	25	41	14	RKH-25-S-4423	206.40
1.9	24	400	M 42 x 2	65	79	63	12	28	20	120	66	M 6	30	46	14	RKH-30-S-4423	225.75
3.7	32	350	M 52 x 2	90	104	84	13.5	38	22	140	81	M 8	38	60	17	RKH-38-S-4423	409.50
